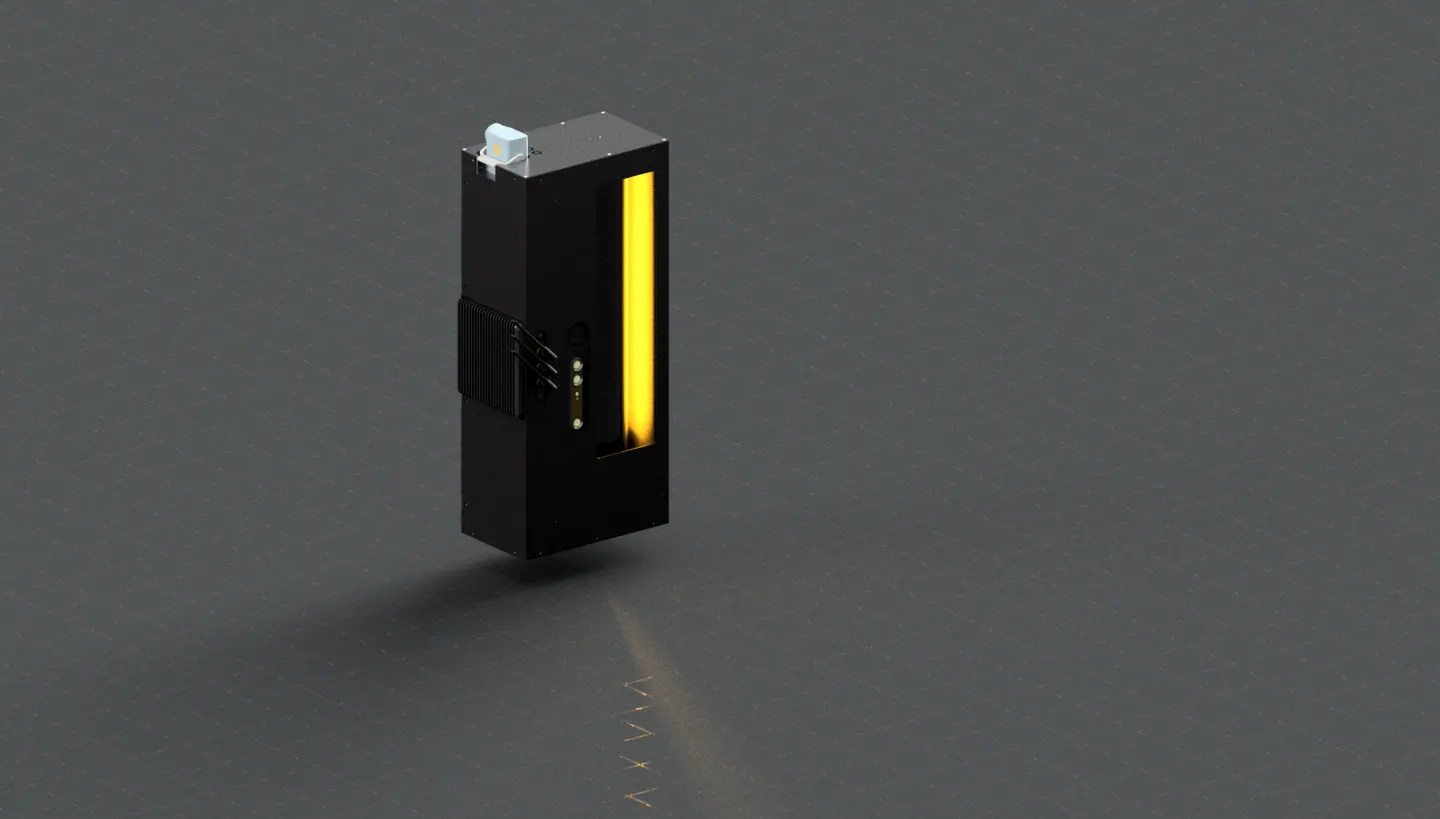

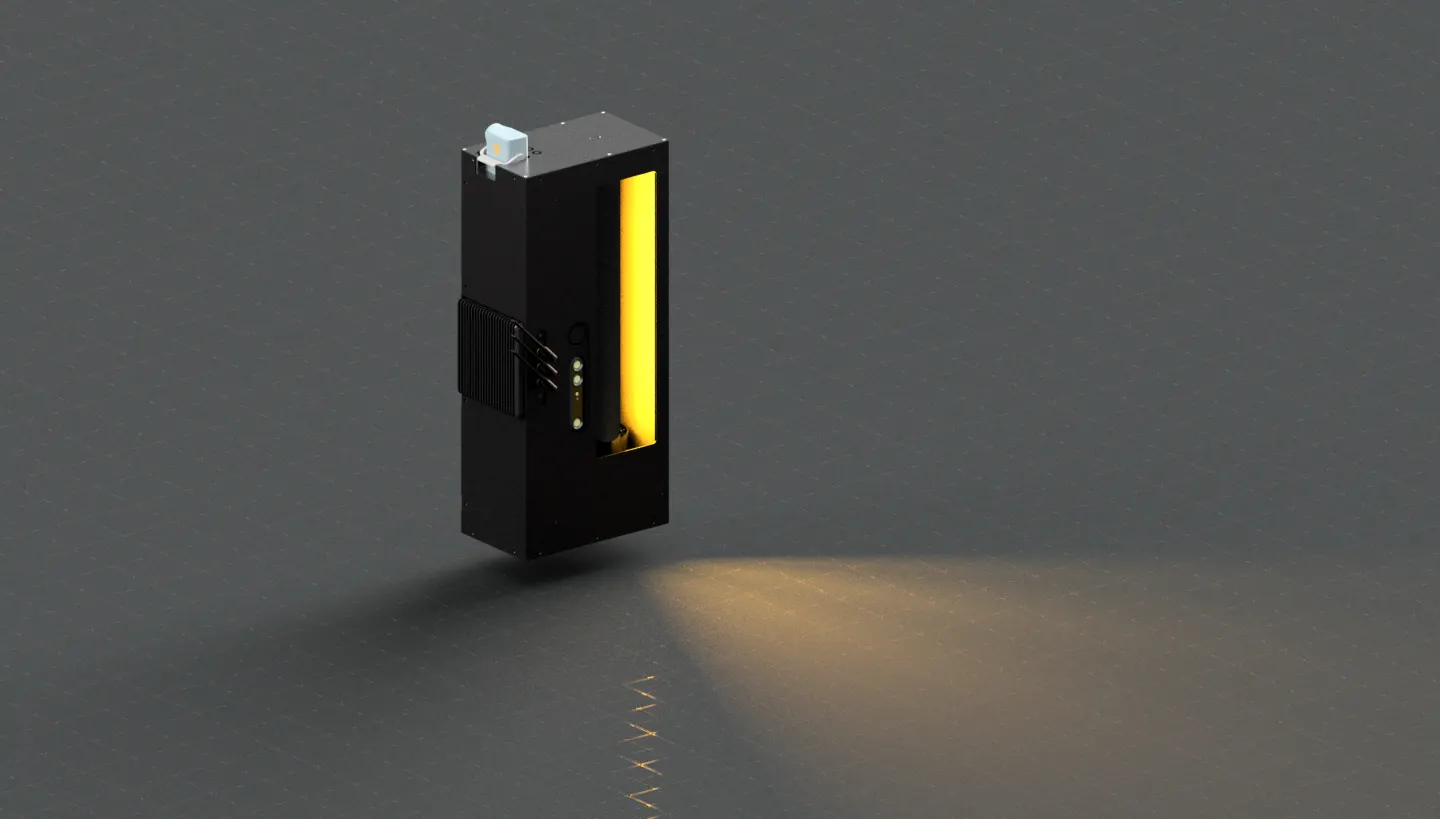

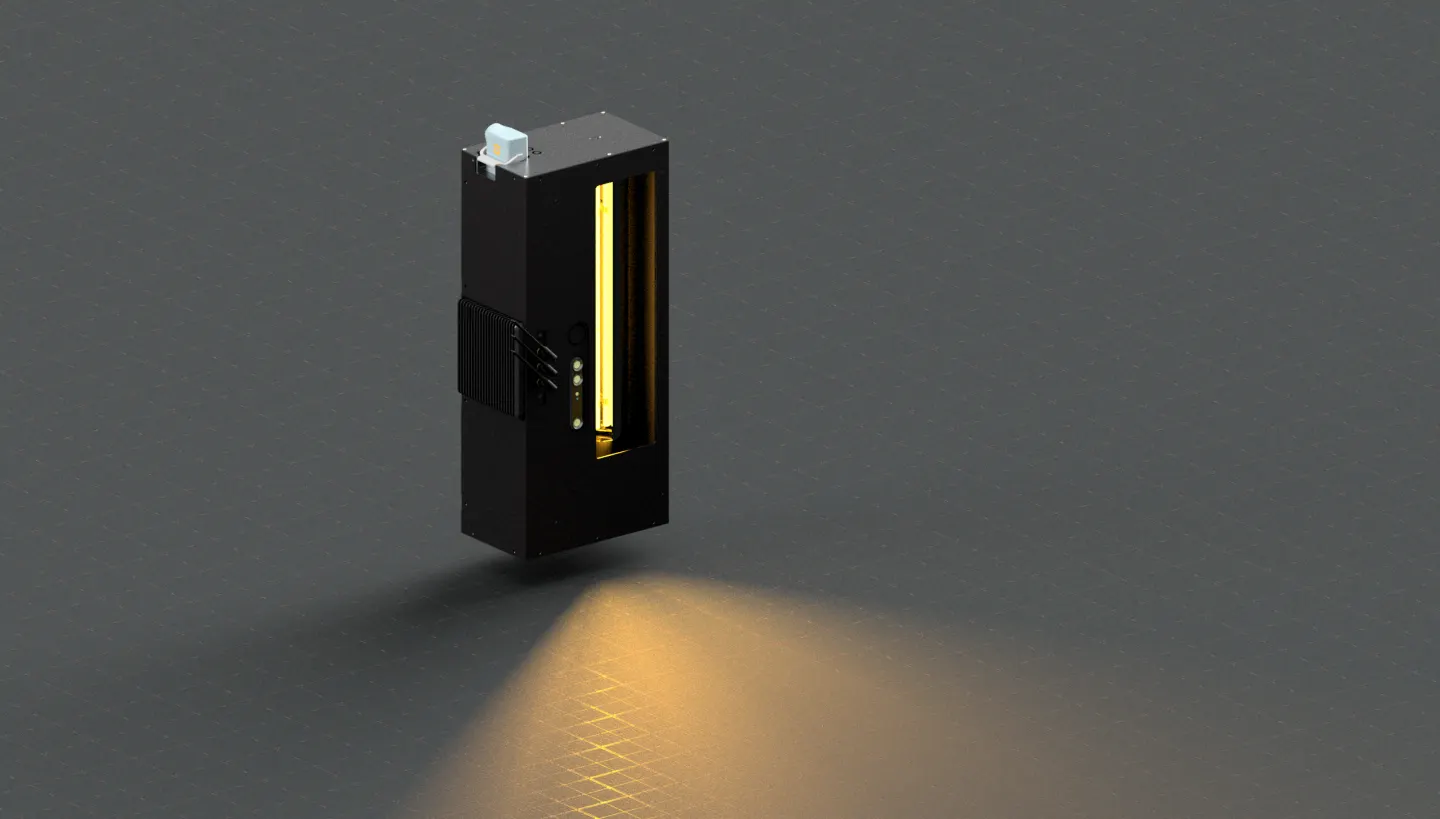

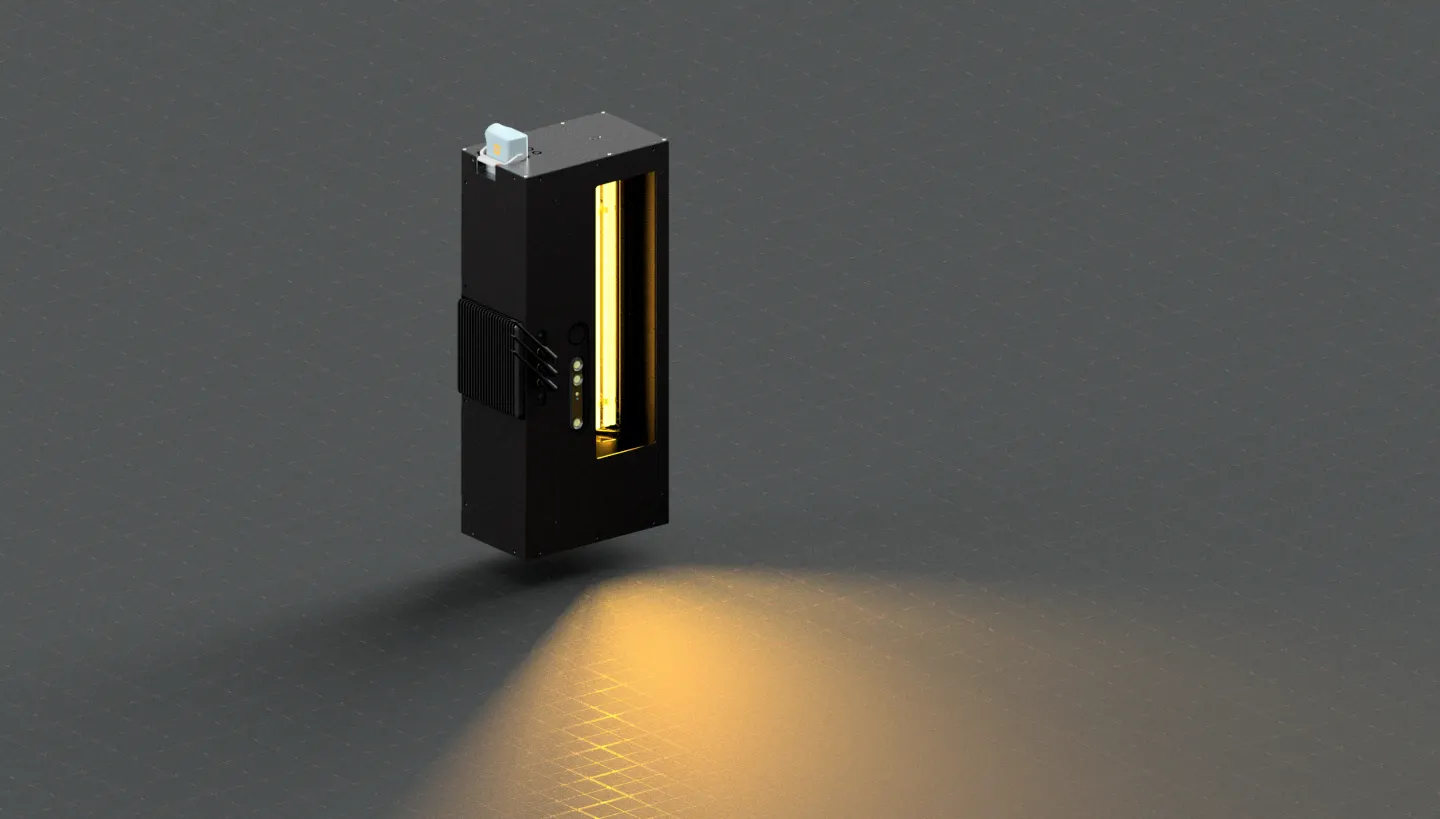

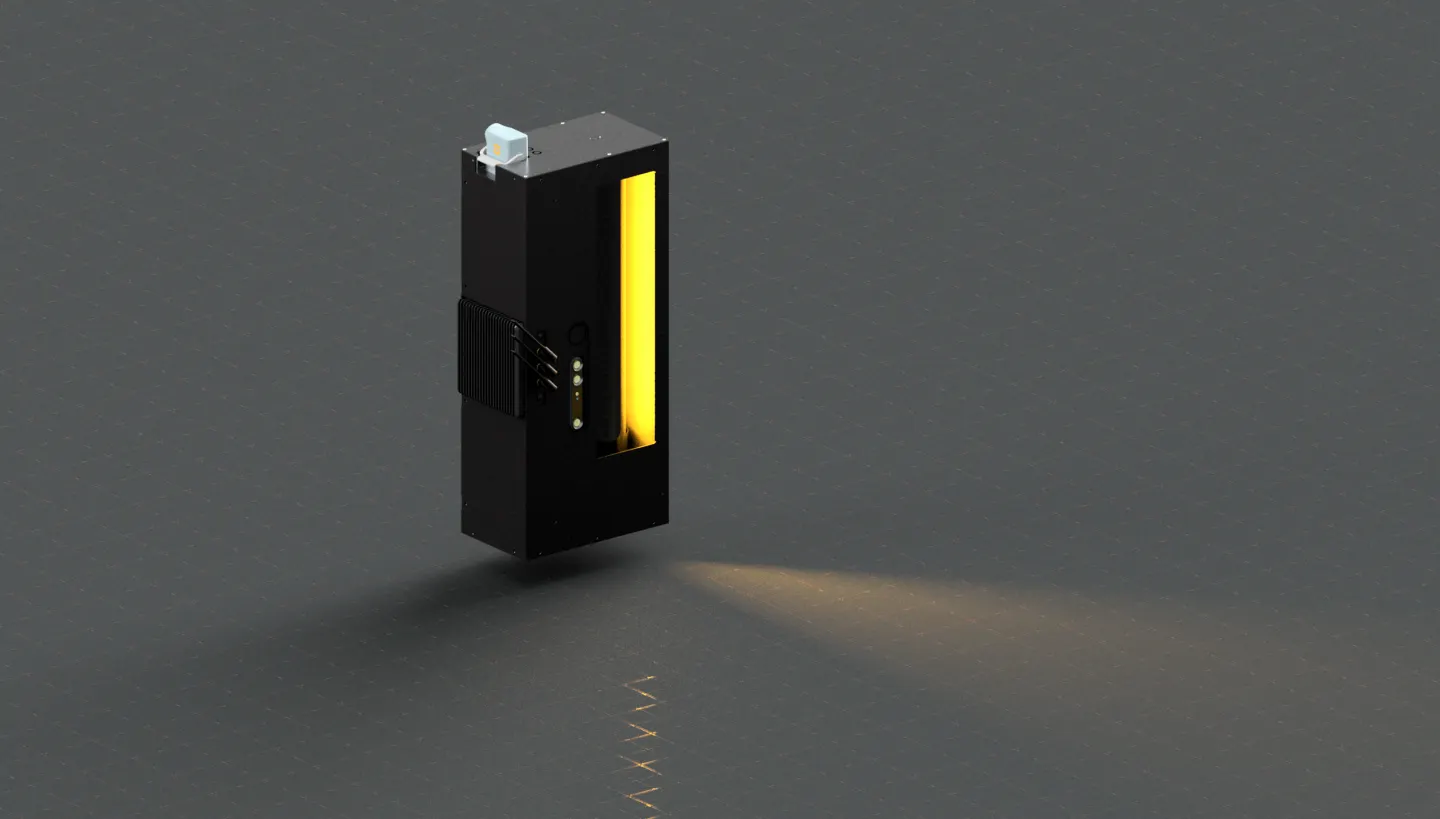

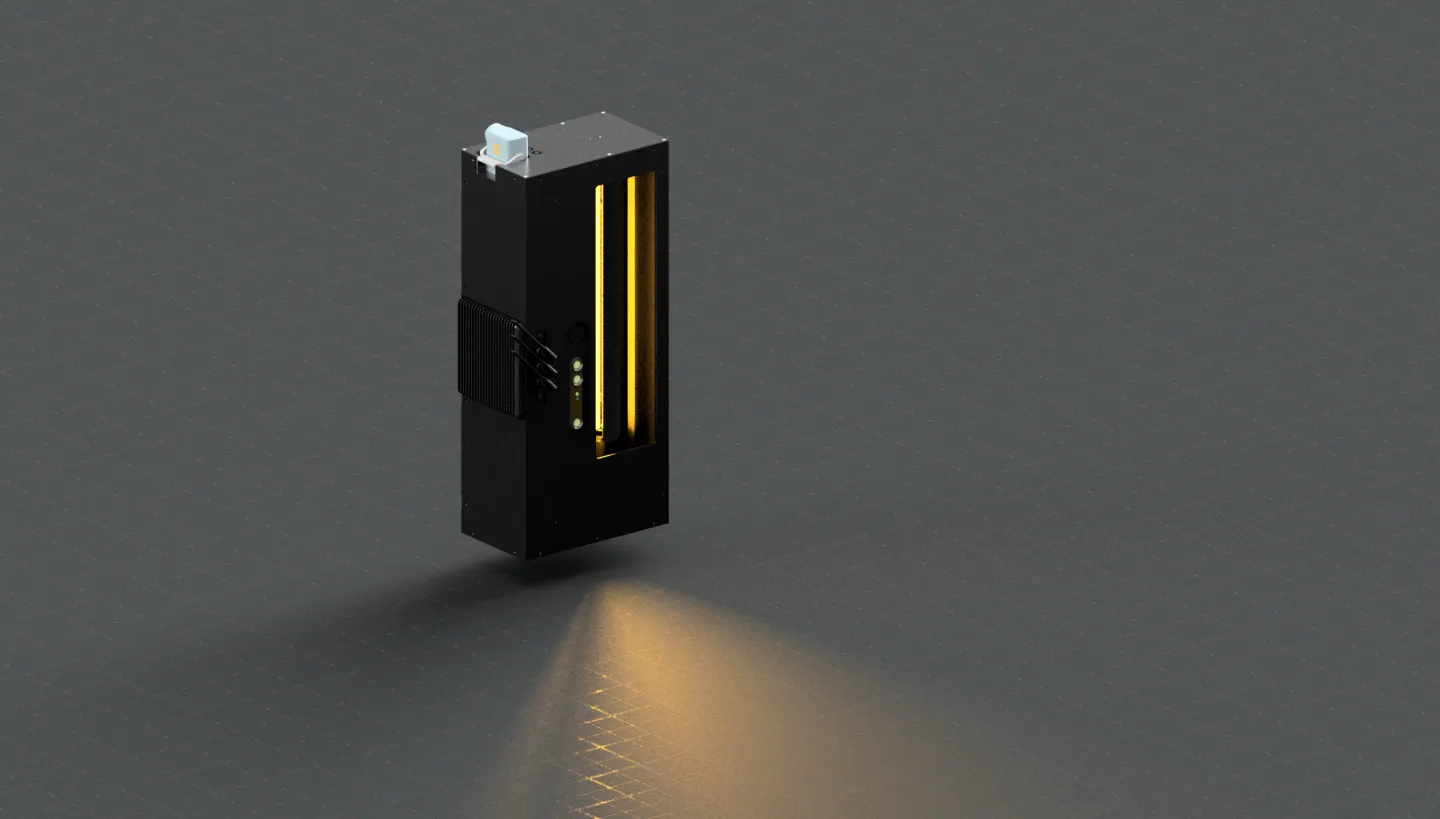

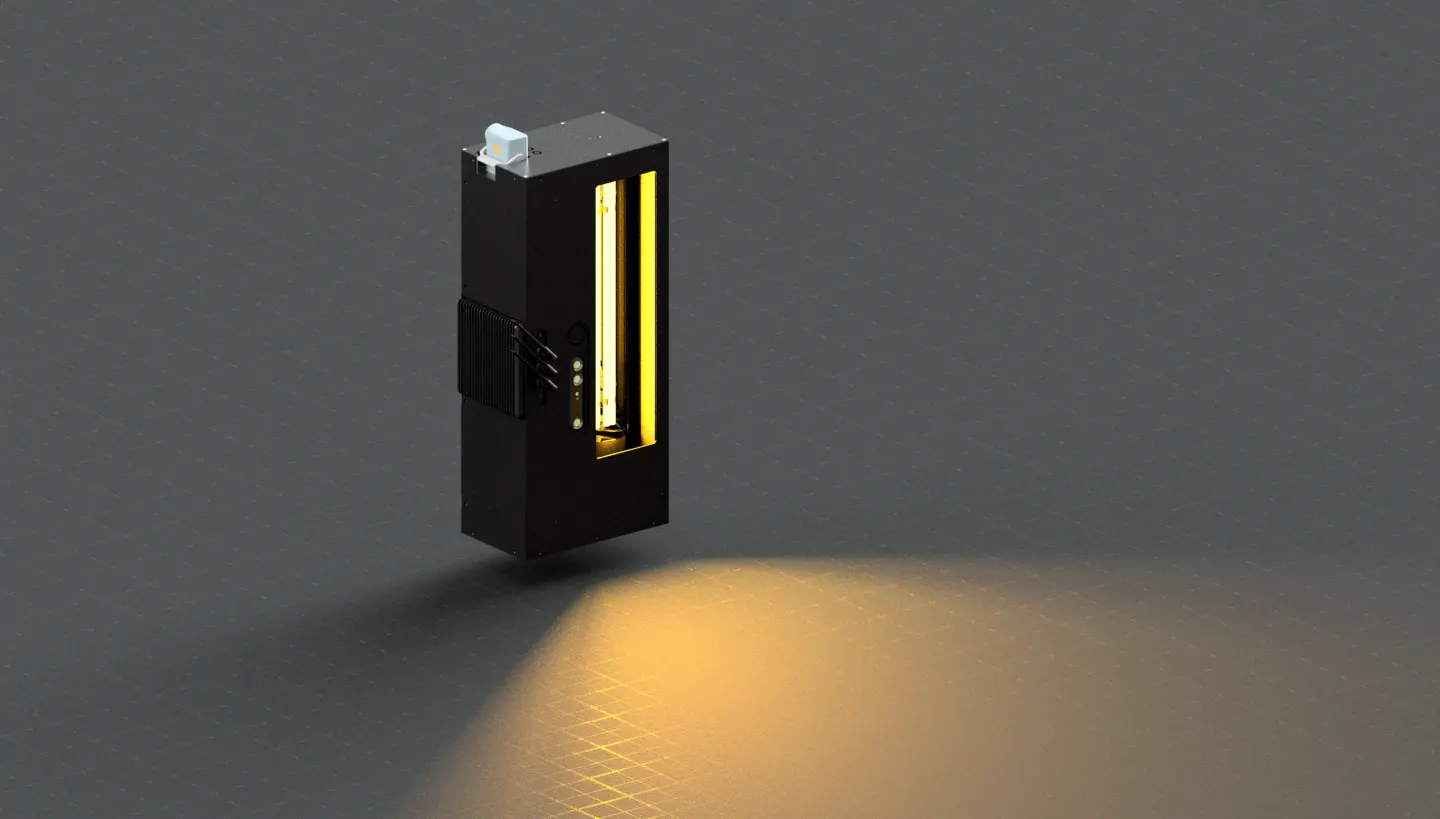

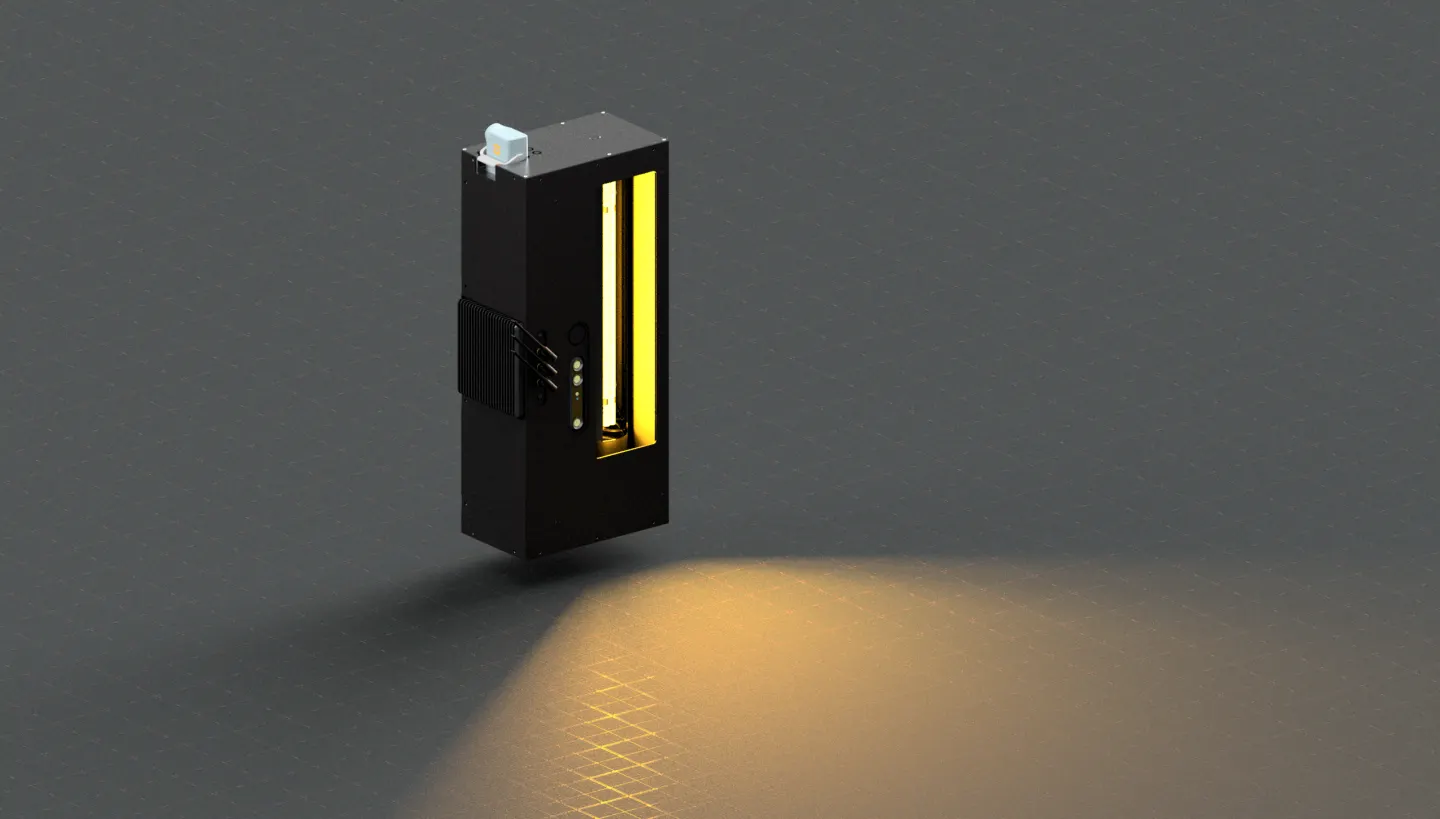

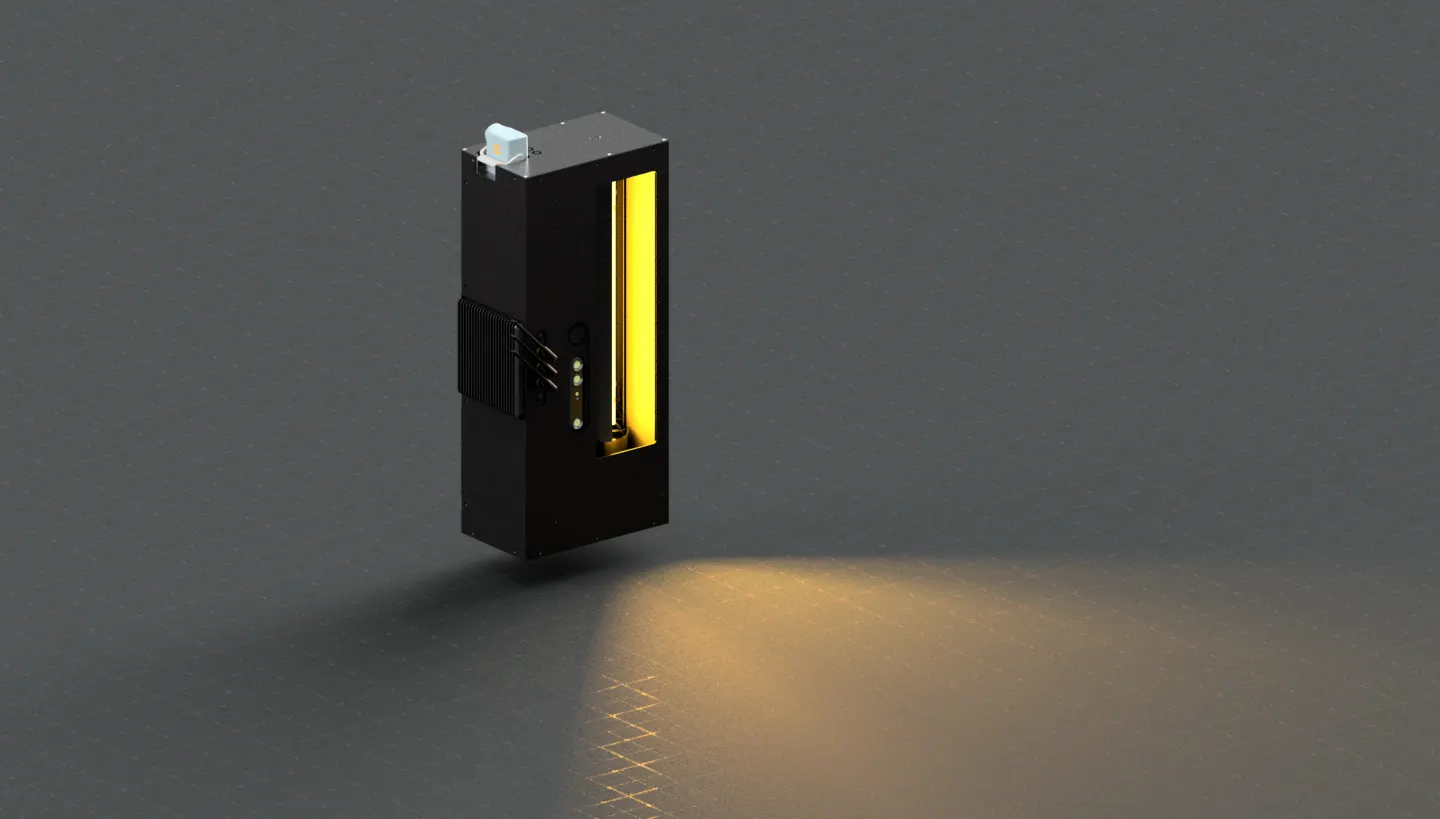

Mechanical modulation
3kW halogen excitation, gated at 10Hz-class.
Synchronized shutter control converts wide-area heating into a repeatable modulation waveform.
PhaseTrace
Sub-millisecond synchronized mechanical thermal modulation for wide-area NDT
A high-power active thermography module combining mechanically gated excitation and sub-millisecond synchronization for quantitative, non-contact layer inspection.
Placeholder for product photo / operating footage
10Hz in-motion excitation. Direct anomaly detection via phase mapping.
Synchronized multimodal imaging pairs mechanically gated shuttering with real-time phase-map analysis.

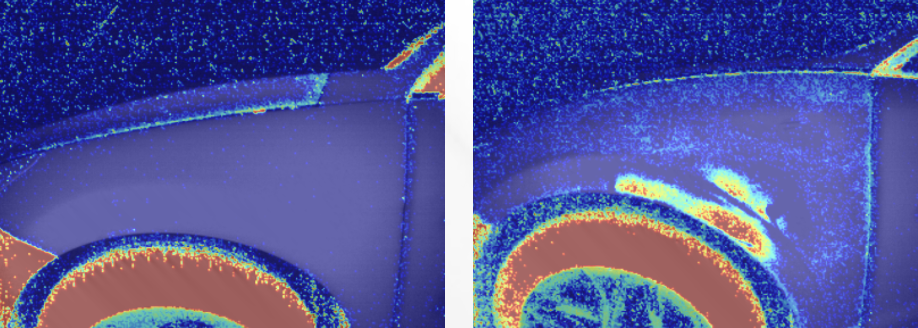

Thermal phase map
Normal front fender left. Repaired front fender right.
Phase contrast reveals repair history and coating discontinuities non-destructively.
Halogen-scale power. Flash-level temporal precision.
PhaseTrace bridges the gap between high-power halogen lock-in systems and high-resolution flash thermography, providing wide-area excitation with phase-resolved temporal capability.
Practical excitation scale
Phase-resolved temporal capability
Halogen lock-in
Wide-area power, limited high-frequency modulation
Flash thermography
Rich impulse response, costly field-scale expansion
PhaseTrace
Wide-area excitation plus repeatable phase analysis
localized / sample-level
wide-area / product-scale
Mechanically gated excitation with local illumination phase correction.
Mechanical sweeping introduces positional phase shifts. The PCT-pending architecture uses visible-spectrum mapping to locally correct the thermal response phase with sub-millisecond synchronization precision.
Patent Pending
10Hz-class modulation from a 3kW halogen source.
Visible-spectrum mapping extracts local illumination timing directly from the surface.
IR imaging measures heat diffusion through coatings, layers, and discontinuities.
Thermal response phase is corrected against local illumination timing to isolate material properties.
Target depth tuning. Multi-frequency phase analysis.
Thermal wave penetration depth is governed by excitation frequency. Lower frequencies probe deeper layers, while higher frequencies emphasize shallow coating response.
Multi-frequency modulation enables comprehensive analysis across complex multilayers and supports quantitative thickness evaluation.
Field-ready integration. Engineered for automated inspection.

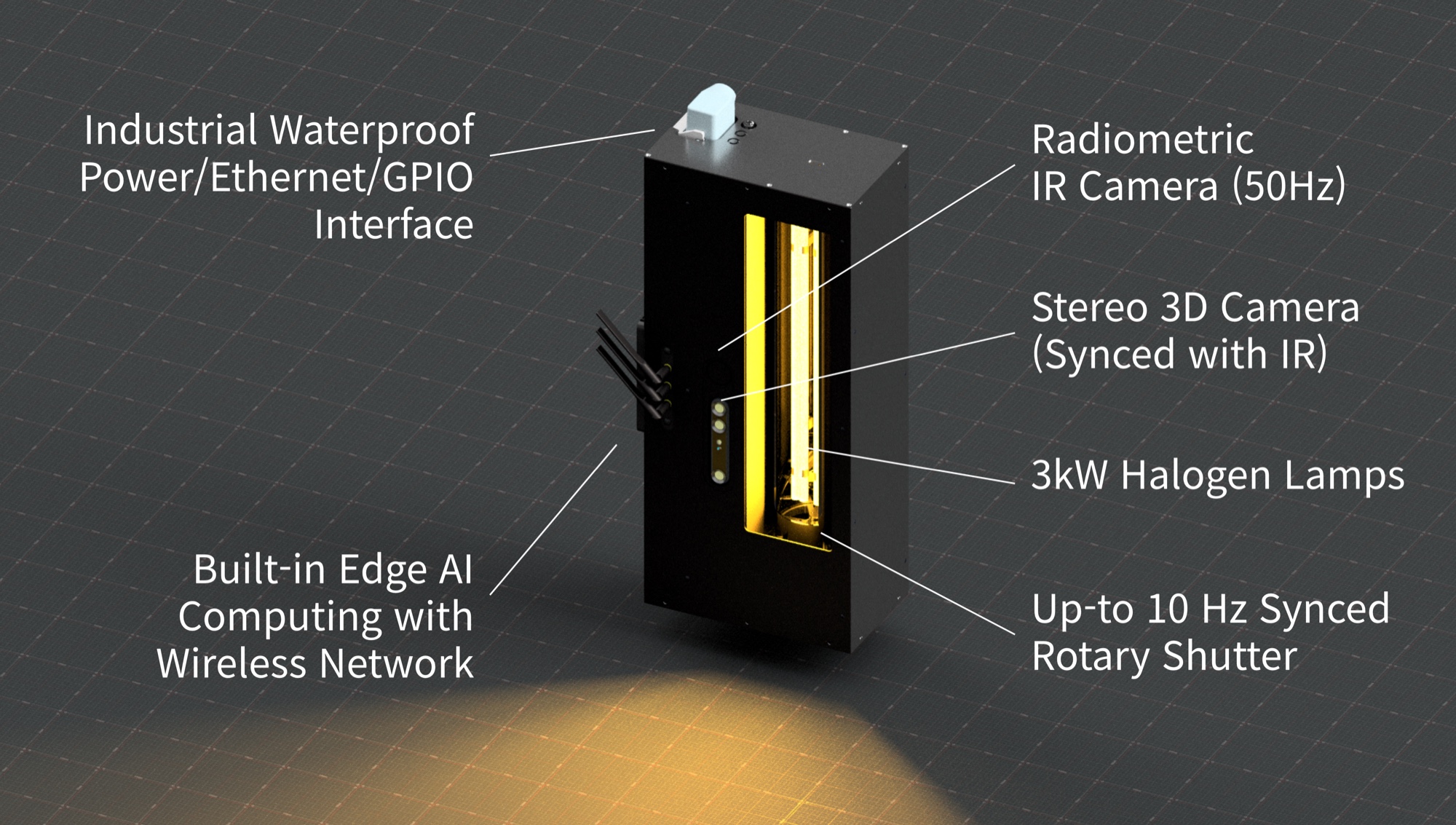

Capture control, synchronized imaging, phase correction, and post-processing run inside the module. PhaseTrace integrates with stands, cobot arms, gantries, or rails without an external PC stack.
Executes real-time signal processing and phase mapping without external PCs.
Runs from a commercial 220V / 3kW battery-pack setup.
Stand, cobot arm, gantry, and rail integration.
M12 Industrial Ethernet, Wi-Fi, LoRa, Bluetooth, and 2 GPIO trigger pins.
Special-purpose, wide-area quantitative layer inspection.
Applicable beyond automotive domains. Designed for any multilayer or composite structure exhibiting thermal contrast, from aerospace stealth coatings to marine vessel hulls.

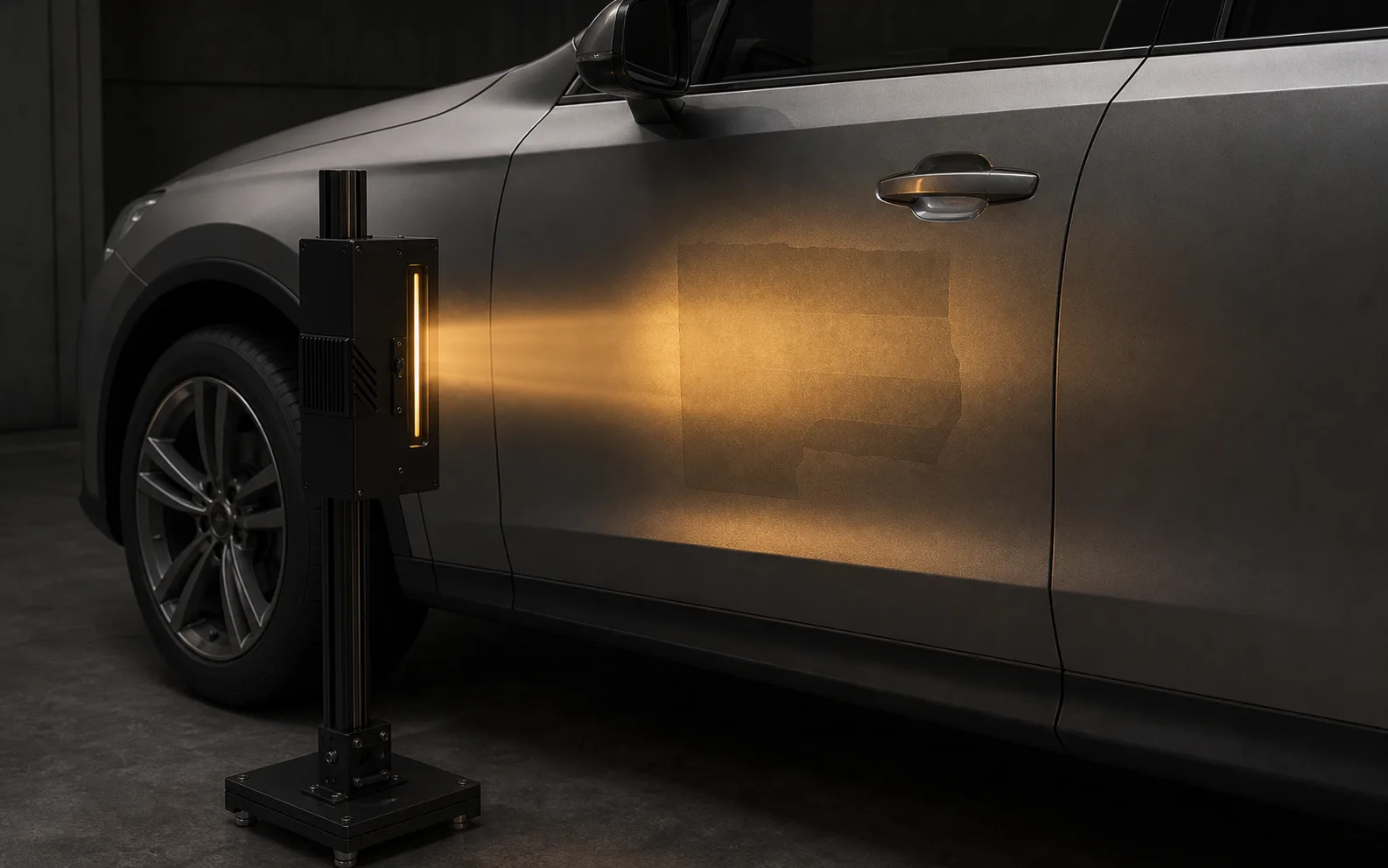

Automotive repair-history detection

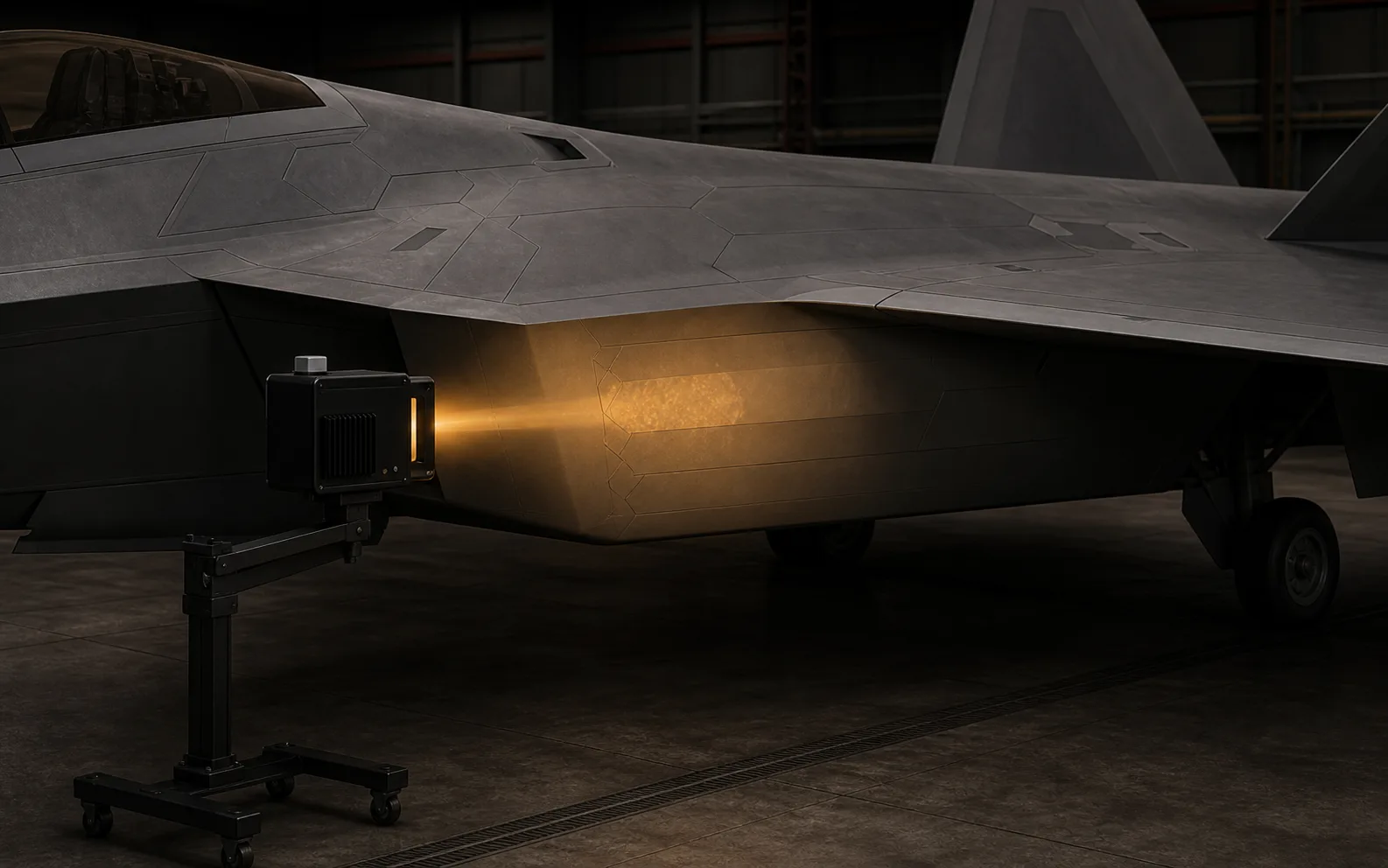

Stealth coating maintenance

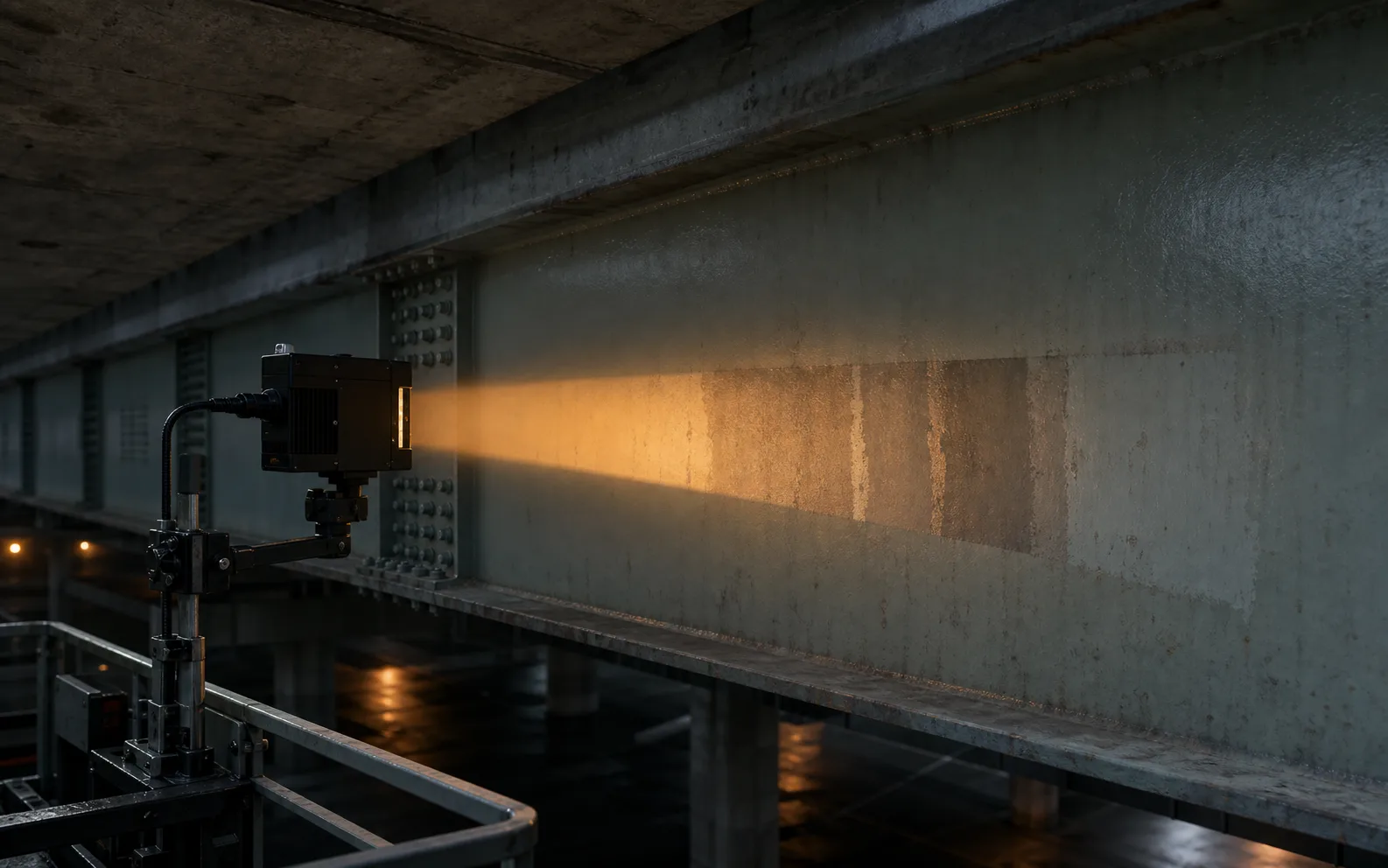

Bridge paint-thickness inspection

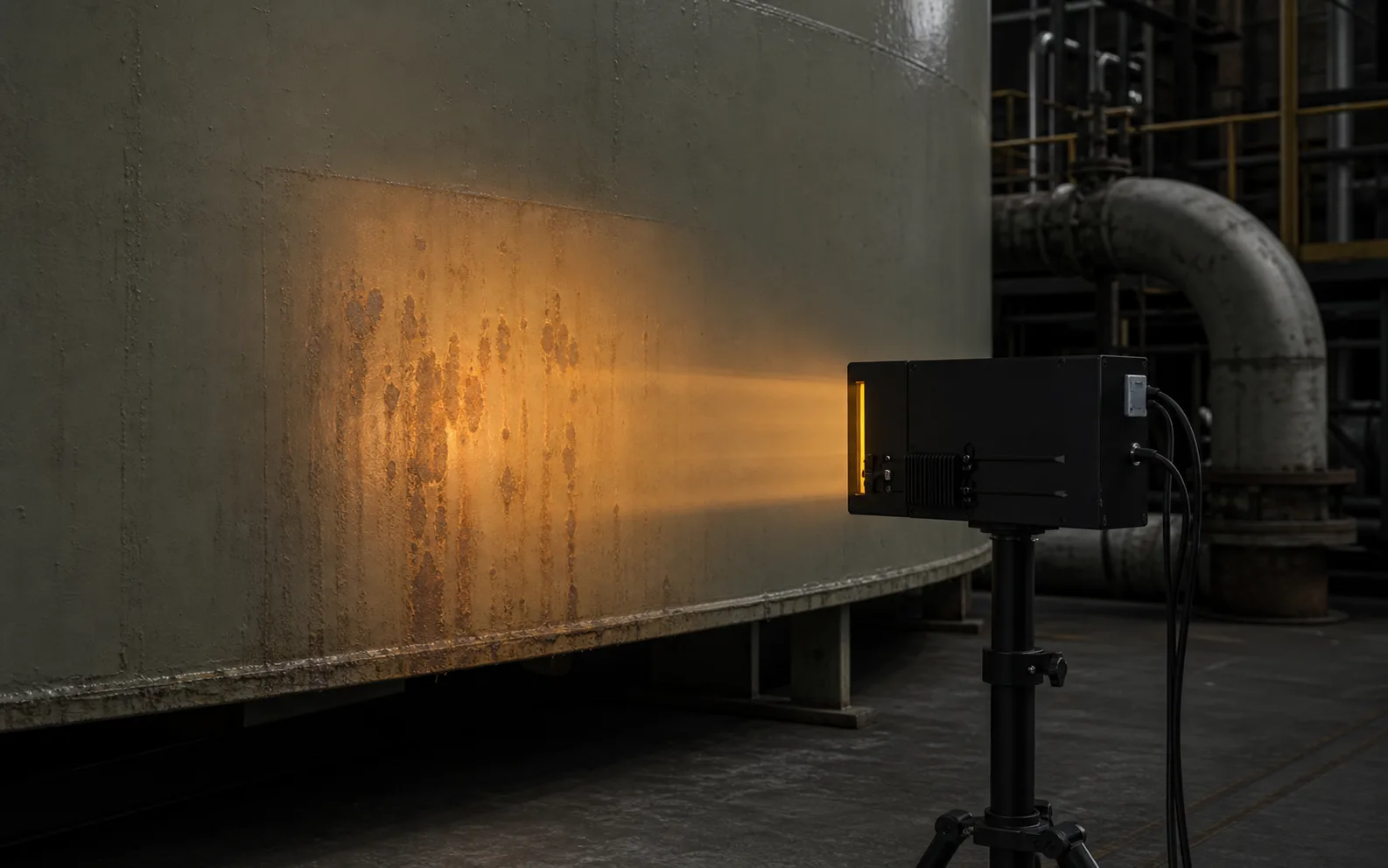

Corrosion under coating

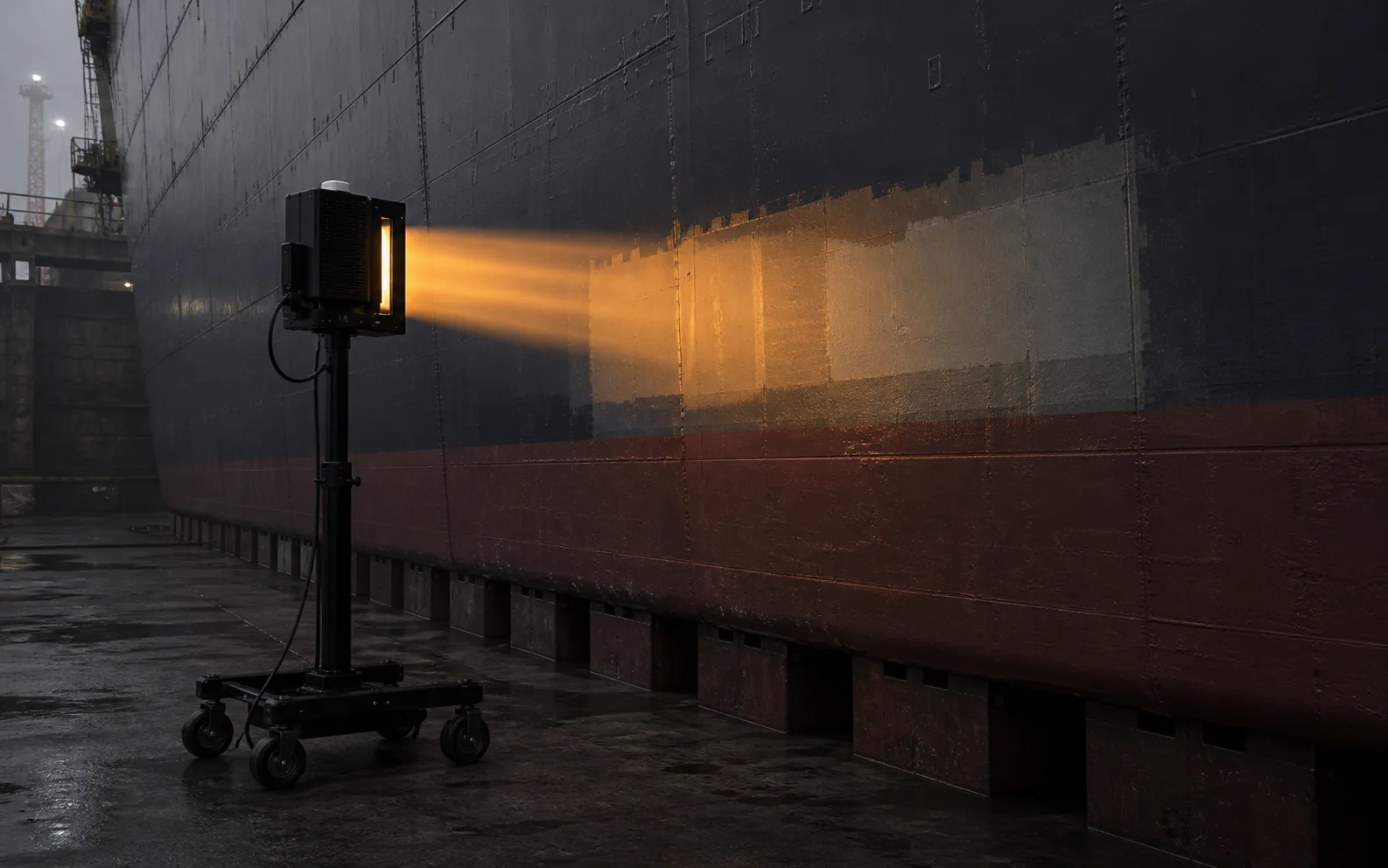

Ship paint inspection

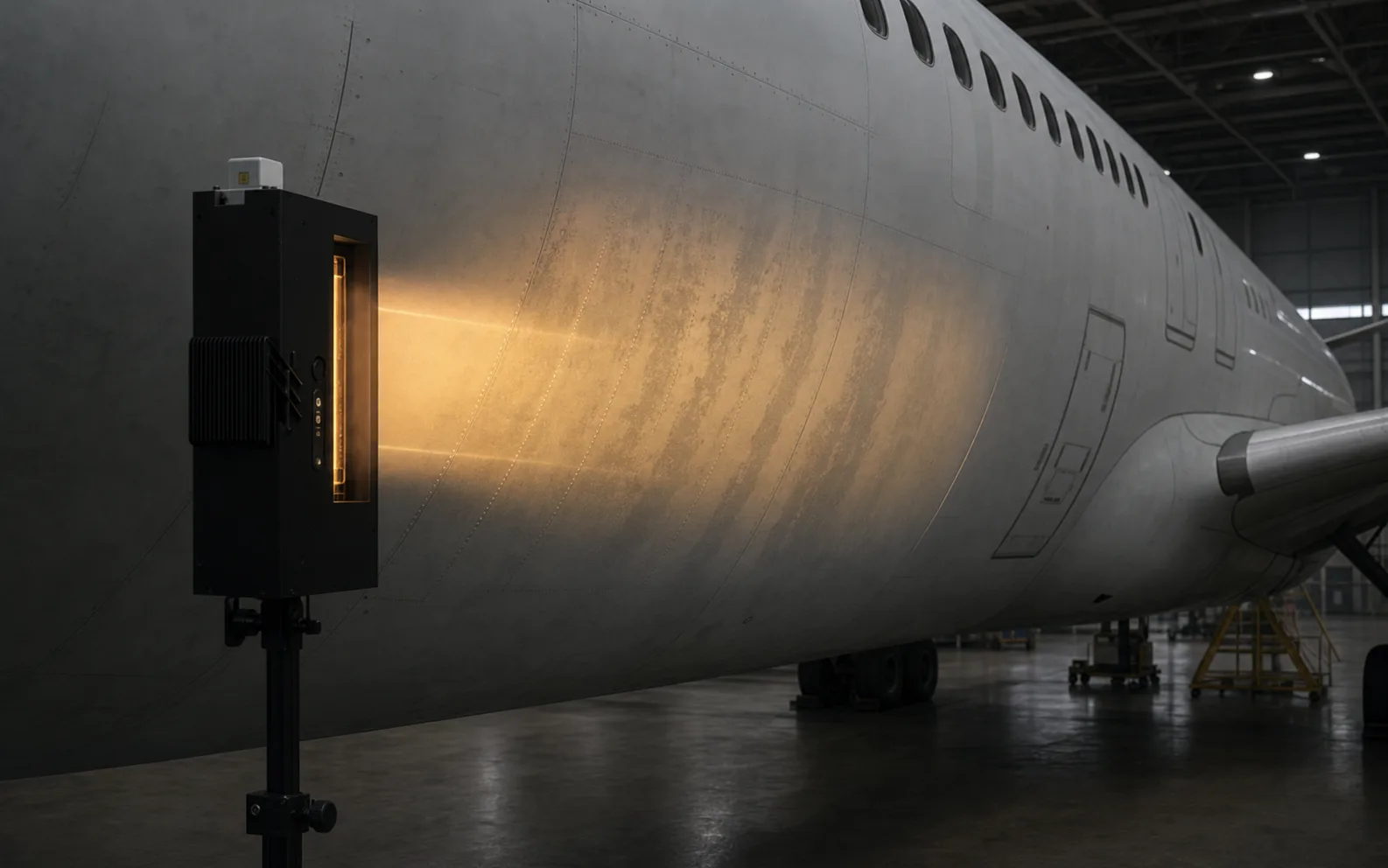

Aerospace coating lifecycle monitoring
Join the Academic & Research Early Access Waitlist.
PhaseTrace is preparing a research and academic first version for H2 2026. Labs and NDT teams can register early interest for group-buy preorder access and introductory launch pricing.
Academic first version
Group-buy preorder interest
Introductory launch pricing planned
